Traffic Sensor Adhesive

PU200 Traffic Sensor Adhesive

PU200 has been developed to be a multi purpose system for holding various types of sensors into the road, both those contained in housings and those designed to go straight into the road.


Traffic resins PU200As with most of Global’s systems, PU200 is designed to cure quickly to ensure the minimum disruption to traffic.

It has a degree of flexibility built into it to ensure that it doesn’t crack up with wear.  Its adhesion qualities are excellent, being able to stick to most surfaces.  Housings or sensors going straight into the road should be cleaned thoroughly to remove any mould release left on the surface which can make a good bond much more difficult to achieve.

To enable installations to be carried out all year round, Winter and Summer versions are available.

Typically, a slot for a 3m sensor which is 25mm deep x 20mm wide would require 2 kits.

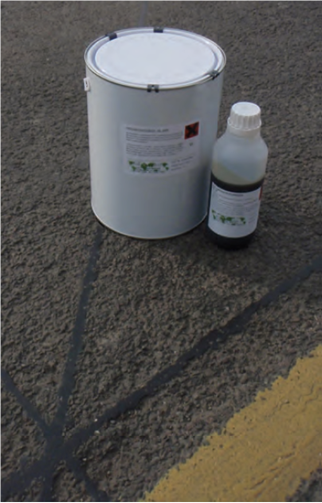

PU200 is available in 4kg (2.3L) Kits.

Like the majority of our products, PU200 is non hazardous and therefore easily shipped around the world.

Mixing Instructions

PU200 - Summer - Mixing - Instructions - pdf

PU200 - Winter - Mixing - Instructions - pdf

PU200 Traffic Sensor Adhesive - Summer - Technical Data

Colour of Mixed System Black
Density of Resin 1.86
Density of Hardener 1.23
Density of Mixed System 1.74
Viscosity of Resin 15,000 cp @ 20-25°C
Viscosity of Hardener 4 Poise @ 20-25°C
Viscosity of Mixed System 13,000 cp @ 20-25°C
Pot Life 8-15 mins @ 15-25°C (150g mass)
Set Time 10-15 mins @ 15-25°C (150g mass)
Full Cure Time 2 days
Peak Exotherm 60°C (150g mass)
Shore D Hardness after 24hrs at room temperature A: 75        B:70 after 5 secs



PU200 Traffic Sensor Adhesive - Winter - Technical Data

Colour of Mixed System Black
Density of Resin 1.86
Density of Hardener 1.23
Density of Mixed System 1.74
Viscosity of Resin 15,000 cp @ below 15°C
Viscosity of Hardener 4 Poise @ below 15°C
Viscosity of Mixed System 13,000 cp @ below 15°C
Pot Life 5-10 mins @ below 15°C (150g mass)
Set Time 10-15 mins @ below 15°C (150g mass)
Full Cure Time 2 days
Peak Exotherm 60°C (150g mass)
Shore D Hardness after 24hrs at room temperature A: 75        B:70 after 5 secs
